PMT

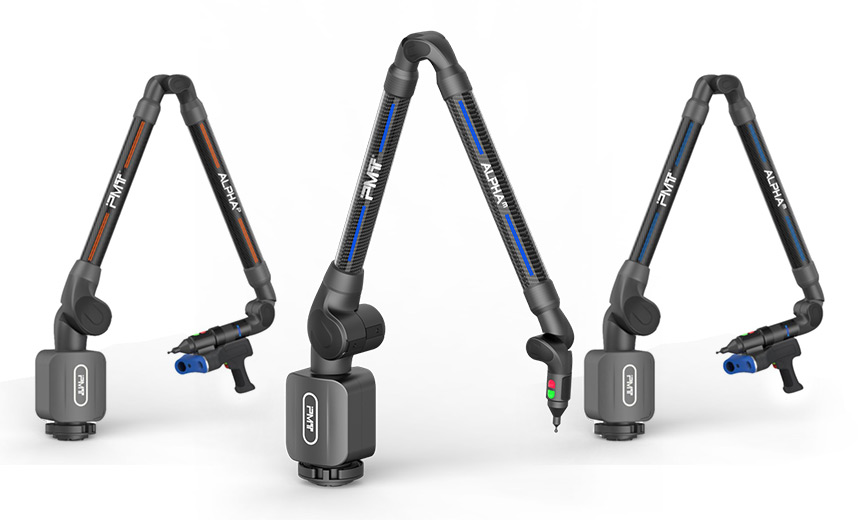

PMT Arm 제품군

PMT Arms Accuracy Specification

  • Hardware Specifications:
  • Operating temp range : 0º C~40º C
  • Temperature rate : 3º C/5 min. Max.
  • Operating humidity range : 0-95%, non-condensing
  • Power supply : Universal worldwide voltage - 100-240VAC; 50/60Hz
  • Battery life : Standby mode 8h+, normal mode 5h+(1 piece);
    Standby mode 16h+,normal mode 10h+ (2 pieces)
  • Data transmission mode : USB or Wi-Fi
  • Weight (range) : 8.8kg to 10.6kg
Measurement
Range		 SPAT EUNI PSIZE PFORM LDIA
6Axis 7Axis 6Axis 7Axis 6Axis 7Axis 6Axis 7Axis 6Axis 7Axis
ALPHA E 1.5m 0.028mm - 0.036mm - 0.015mm - 0.029mm - 0.038mm -
ALPHA M 0.018mm - 0.025mm - 0.009mm - 0.016mm - 0.026mm -
ALPHA P 0.012mm - 0.022mm - 0.007mm - 0.012mm - 0.024mm -
ALPHA E 2.0m 0.030mm - 0.040mm - 0.018mm - 0.035mm - 0.041mm -
ALPHA M 0.020mm 0.022mm 0.028mm 0.030mm 0.010mm 0.012mm 0.018mm 0.022mm 0.032mm 0.040mm
ALPHA P 0.016mm 0.018mm 0.024mm 0.026mm 0.008mm 0.010mm 0.015mm 0.019mm 0.030mm 0.038mm
ALPHA E 2.5m 0.035mm - 0.045mm - 0.020mm - 0.038mm - 0.050mm
ALPHA M 0.023mm 0.027mm 0.030mm 0.032mm 0.012mm 0.013mm 0.022mm 0.025mm 0.038mm 0.048mm
ALPHA P 0.018mm 0.020mm 0.026mm 0.028mm 0.009mm 0.011mm 0.018mm 0.022mm 0.032mm 0.042mm
ALPHA E 3.0m 0.055mm - 0.065mm - 0.028mm - 0.045mm - 0.080mm -
ALPHA M 0.034mm 0.042mm 0.042mm 0.053mm 0.016mm 0.020mm 0.032mm 0.035mm 0.052mm 0.078mm
ALPHA P 0.026mm 0.032mm 0.038mm 0.048mm 0.012mm 0.016mm 0.025mm 0.032mm 0.045mm 0.072mm
ALPHA E 3.5m 0.075mm - 0.080mm - 0.035mm - 0.058mm - 0.098mm -
ALPHA M 0.043mm 0.055mm 0.056mm 0.066mm 0.020mm 0.024mm 0.038mm 0.043mm 0.066mm 0.092mm
ALPHA P 0.036mm 0.045mm 0.052mm 0.061mm 0.016mm 0.020mm 0.034mm 0.039mm 0.060mm 0.088mm
ALPHA E 4m 0.090mm - 0.100mm - 0.044mm - 0.068mm - 0.116mm -
ALPHA M 0.052mm 0.065mm 0.066mm 0.082mm 0.024mm 0.029mm 0.044mm 0.048mm 0.083mm 0.102mm
ALPHA P 0.045mm 0.055mm 0.063mm 0.076mm 0.020mm 0.026mm 0.038mm 0.044mm 0.077mm 0.098mm
ALPHA E 4.5m 0.112mm - 0.120mm - 0.048mm - 0.086mm - 0128mm -
ALPHA M 0.061mm 0.073mm 0.089mm 0.099mm 0.038mm 0.043mm 0.078mm 0.082mm 0.108mm 0.132mm
ALPHA P 0.055mm 0.065mm 0.080mm 0.095mm 0.028mm 0.036mm 0.050mm 0.065mm 0.101mm 0.122mm

ALPHA EDU & LLP Laser Scanner Accuracy Specification

HD블루레이저 스캐너는 고속 스캐닝을 목적으로 개발되었으며, 150mm의 넓은 스캐닝 너비를 지원하여 초당 최대 1.2milion포인트 획득이 가능합니다.

Item HD SD
Accuracy ±15µm (2sigma) ±28µm (2sigma)
Stand-off Laser
Effective Scan Width Near Field 80mm; Far Field 150mm
Points Per Line Maximum 4,000 points/line
Scan Rate 1.2 Million Points Per Second
Laser Class 2
Weight 536g

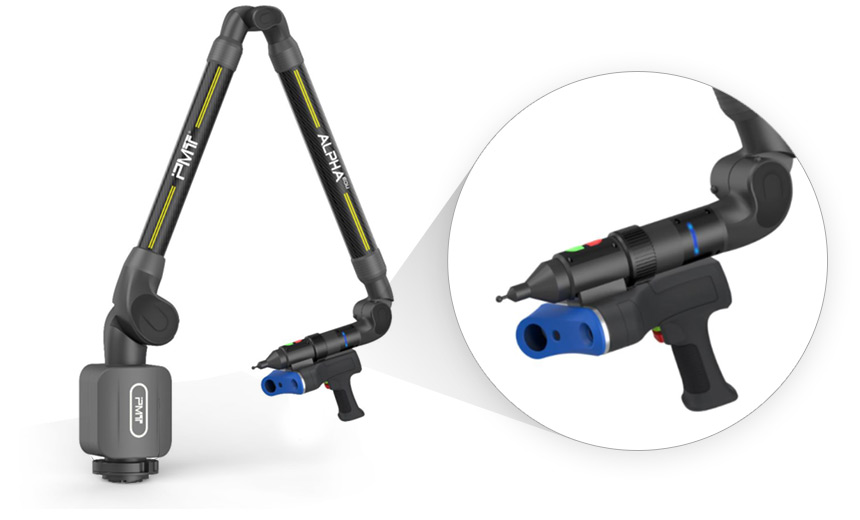

교육용 스캐닝 시스템

Measurement
Range		 SPAT EUNI PSIZE PFORM LDIA
6Axis 7Axis 6Axis 7Axis 6Axis 7Axis 6Axis 7Axis 6Axis 7Axis
ALPHA EDU 1.5m 0.05mm - 0.065mm - 0.027mm - 0.053mm - 0.068mm -
ALPHA EDU 2.0m 0.054mm 0.059mm 0.072mm 0.079mm 0.031mm 0.037mm 0.060mm 0.067mm 0.074mm 0.082mm
ALPHA EDU 2.5m 0.063mm 0.071mm 0.081mm 0.091mm 0.036mm 0.040mm 0.068mm 0.073mm 0.090mm 0.102mm
ALPHA EDU 3.0m 0.099mm 0.105mm 0.117mm 0.128mm 0.051mm 0.058mm 0.081mm 0.086mm 0.144mm 0.168mm
ALPHA EDU 3.5m 0.135mm 0.146mm 0.144mm 0.159mm 0.063mm 0.071mm 0.104mm 0.111mm 0.176mm 0.195mm
ALPHA EDU 4.0m 0.162mm 0.178mm 0.180mm 0.198mm 0.079mm 0.088mm 0.122mm 0.129mm 0.209mm 0.235mm
ALPHA EDU 4.5m 0.200mm 0.221mm 0.216mm 0.238mm 0.086mm 0.099mm 0.155mm 0.162mm 0.230mm 0.261mm
